Model
LW-CS1200A
Automatic Log Cut-Off Saw (Adjustable Length)
Hanging stop plate adjusts from 50 to 600 cm electrically. One saw covers every cutting spec — built for sawmills and traders switching between orders.
| Blade diameter | 1200 mm |
|---|---|
| Saw blades | 1 standard, up to 3 heads |
| Max log diameter | ≤ 50 cm |
| Cutting length | 50–600 cm, freely adjustable |
| Cutting accuracy | ±3.5 mm |
| Stop plate | Hanging type, electric adjust (~3 s per meter) |
| Control | Programmable panel (set length + production counting) |
| Capacity | 60–90 pcs/h (Ø20 cm pine, 1 m cuts) |
| Total power | 21 kW |
| Voltage | 380V/50Hz (220/415V, 60Hz custom) |
All specs customizable — cutting length, diameter, blade count, voltage (220/380/415V, 50/60Hz).
Why Factories Choose It
- ✓ Change cutting length in seconds — 50 to 600 cm on one machine
- ✓ Millimeter accuracy across the full range (±3.5 mm)
- ✓ Multi-blade parallel cutting, up to 3 heads
- ✓ Connects with LONWOOD auto feeder for hands-free production
When your orders change — 1.2 m boards this week, 4 m poles next week — the adjustable cut-off saw changes with them. The hanging stop plate slides anywhere between 50 and 600 cm; electric adjustment covers about one meter in three seconds.
Everything else matches our fixed-length model: programmable panel (set length + count), multi-blade heads, and bolt-on connection to LONWOOD log deck feeders with one shared control cabinet.
See It Running

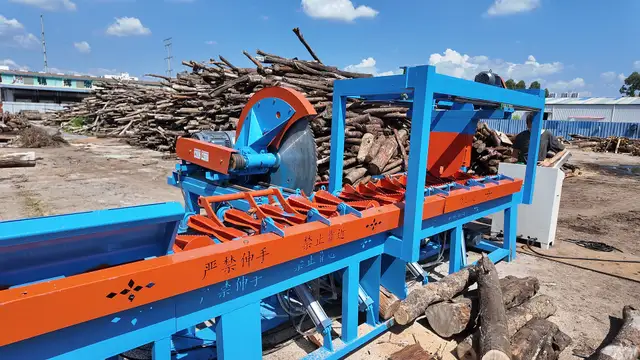

Filmed at a customer's yard — this machine is in daily production. Machine colour is customised per order.
Watch the full video on its own page — Open video page →
Watch on YouTubeLW-CS1200A — Get Factory Price
Reply within 12 hours. Tell us your log diameter & length — we build to your size.
