Model
LW-CS1200F

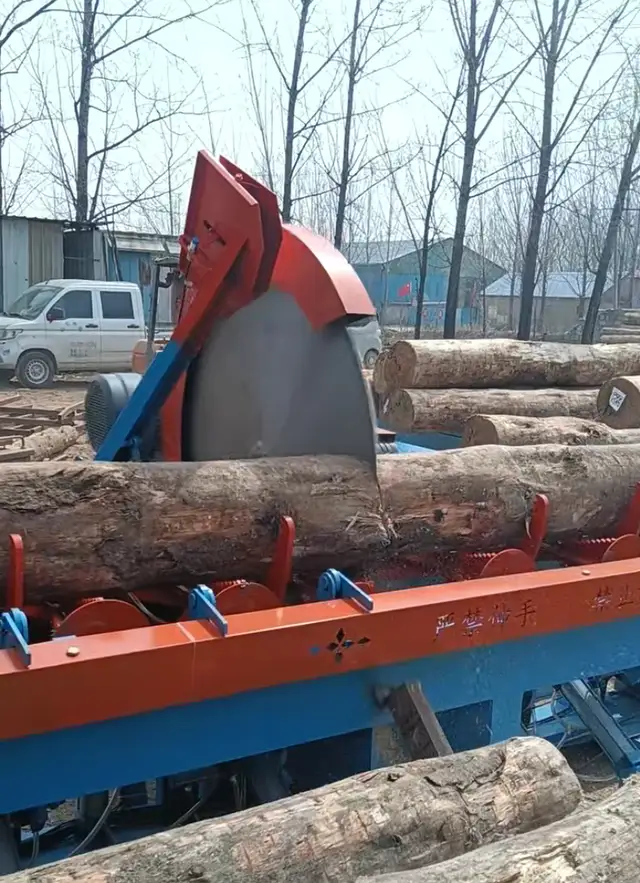

Automatic Log Cut-Off Saw (Fixed Length)
Programmable multi-blade cross-cut saw with fixed stop plate. Cutting length customized at the factory to your exact spec — millimeter accuracy for mass production of one size.
| Blade diameter | 1200 mm |
|---|---|
| Saw blades | 1 standard, up to 6 heads |
| Max log diameter | ≤ 50 cm |
| Cutting length | 50–200 cm, fixed at factory to your order |
| Cutting accuracy | ±3.8 mm |
| Stop plate | Fixed at conveyor end (manual set, ~3 min) |
| Control | Programmable panel (production counting) |
| Capacity | 60–90 pcs/h (Ø20 cm pine, 1 m cuts) |
| Total power | 18 kW |
| Voltage | 380V/50Hz (220/415V, 60Hz custom) |
All specs customizable — cutting length, diameter, blade count, voltage (220/380/415V, 50/60Hz).
Why Factories Choose It
- ✓ Programmable control panel — set once, cut all day
- ✓ Millimeter accuracy for ice-cream stick and tableware factories
- ✓ Multi-blade custom design — one pass, multiple cuts (up to 6 heads)
- ✓ Bolts onto LONWOOD auto feeder, shared control cabinet
- ✓ Simplest structure of the three saws — easiest to run and maintain
The fixed-length cut-off saw is built for factories that cut the same length all day, every day — ice cream sticks, matches, toothpicks, standard boards. Tell us your length once (within 50–200 cm); we set the stop plate at exactly that position, so every log comes out identical within ±3.8 mm.
Multiple saw heads work in parallel (1 standard, up to 6): one pass through the conveyor produces several finished sections at once. Combined with a LONWOOD log deck feeder (bolt-on connection, shared control cabinet), a single worker runs the entire line.
LW-CS1200F — Get Factory Price
Reply within 12 hours. Tell us your log diameter & length — we build to your size.
